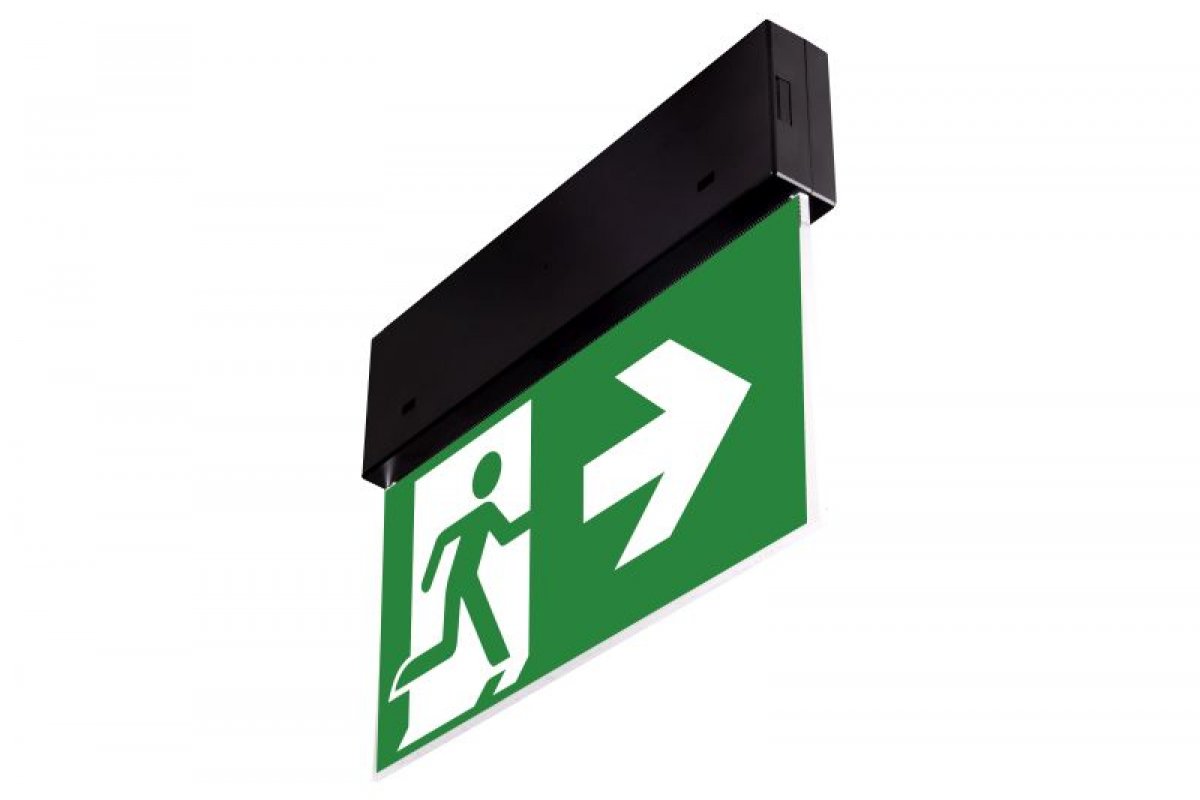

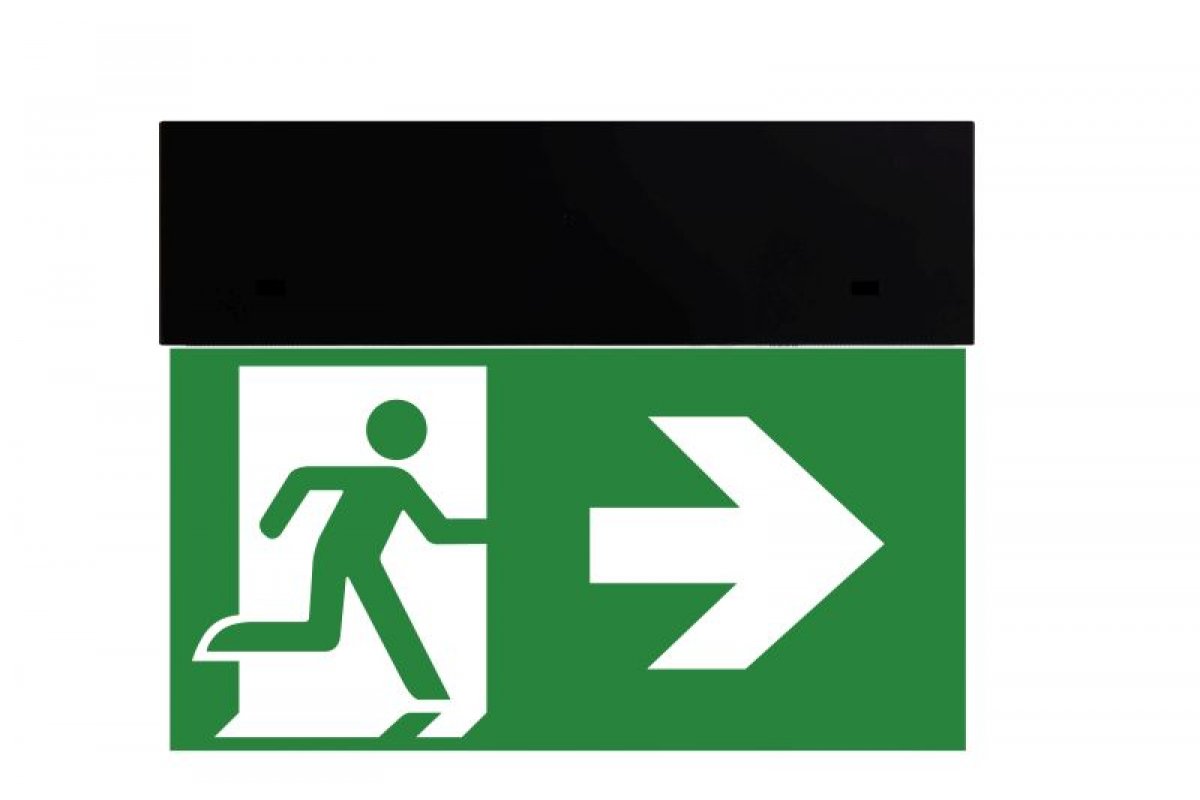

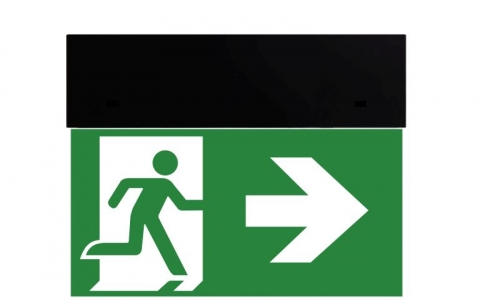

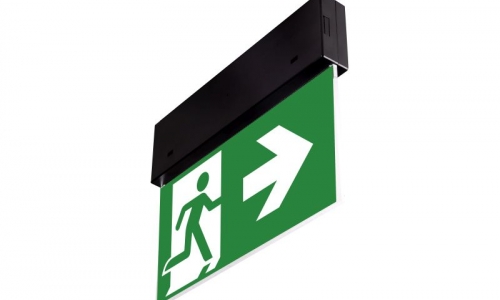

DIRECTO S

Napajalna napetost:	220 - 240 V / 50-60 Hz, AC
Čas polnenja:	24 h
Tip baterije:	Ni-Cd HT 3.6V, 800mA
Avtonomija delovanja:	3 h
Stopnja zaščite:	IP20
Material:	PC ohišje, PMMA
Indeks barvne reprodukcije CRI:	Ra>=70
Vidljivost:	25 m

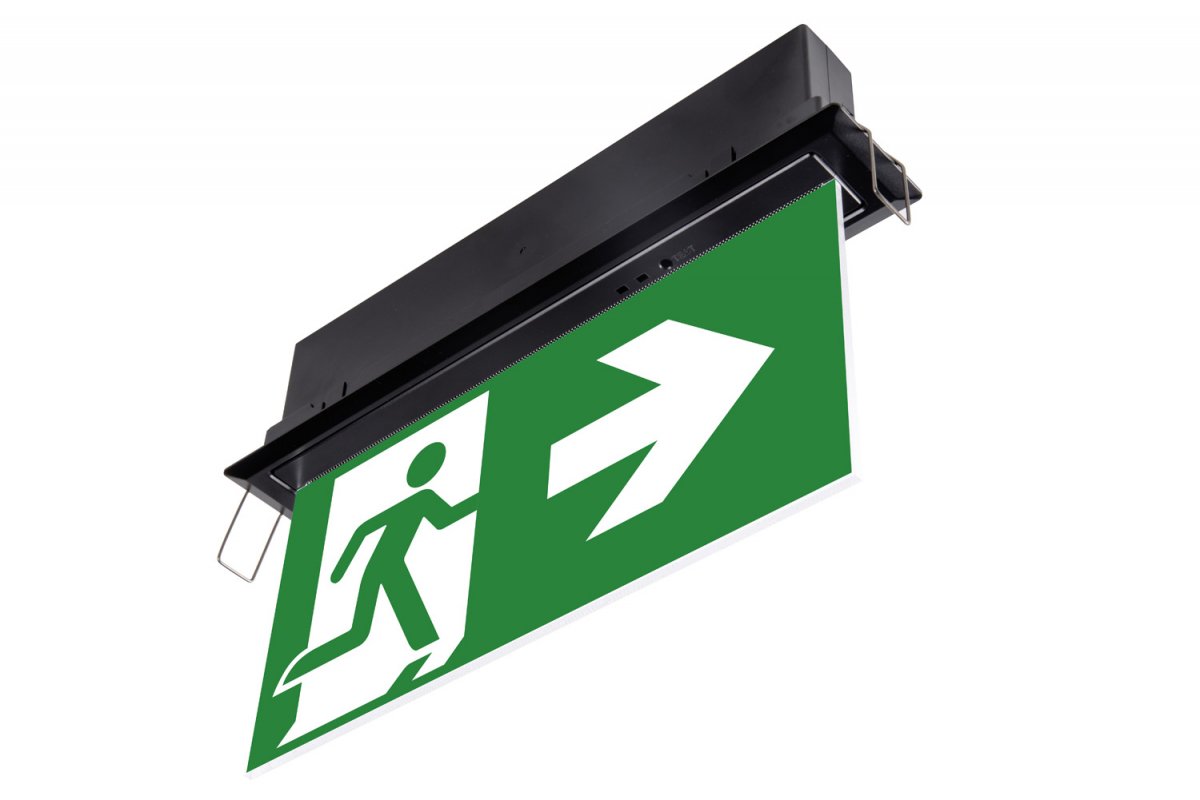

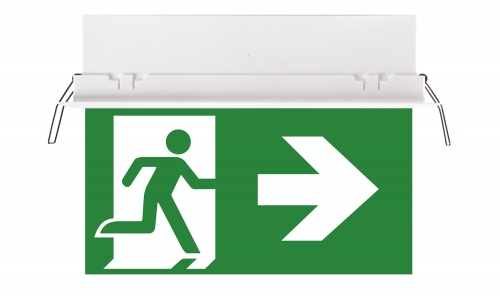

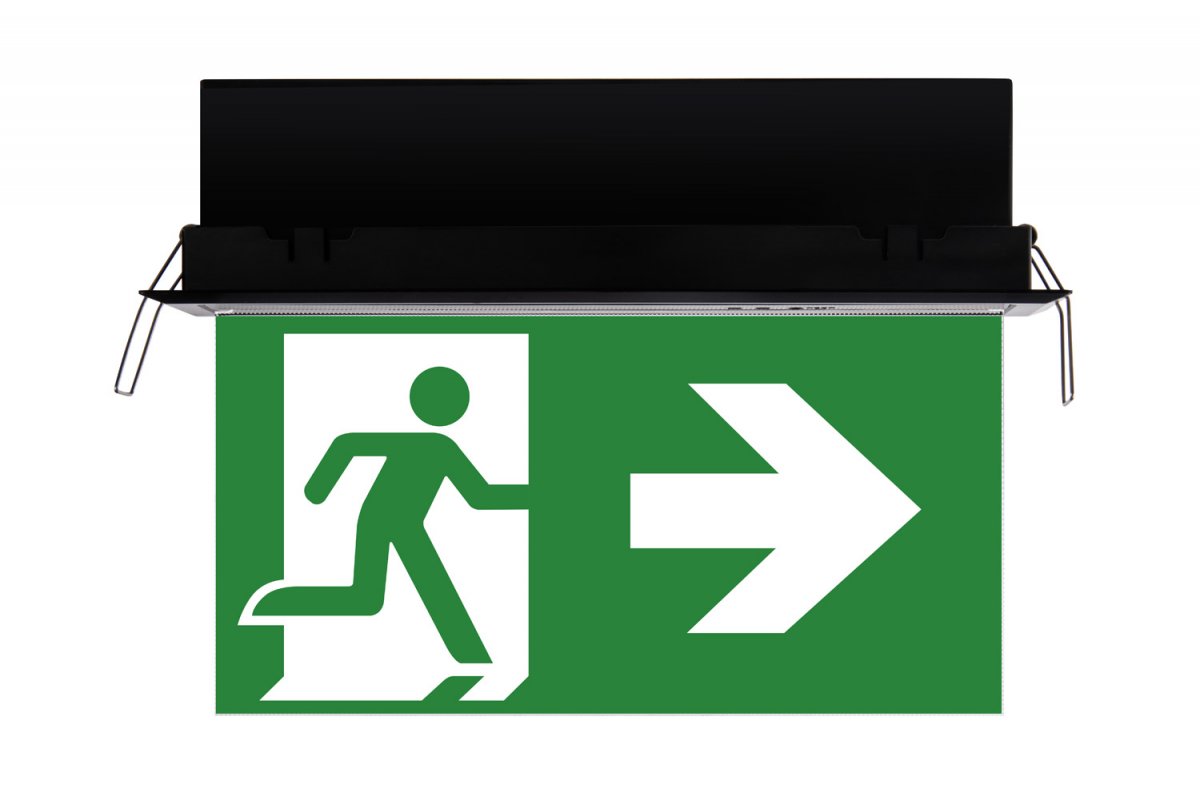

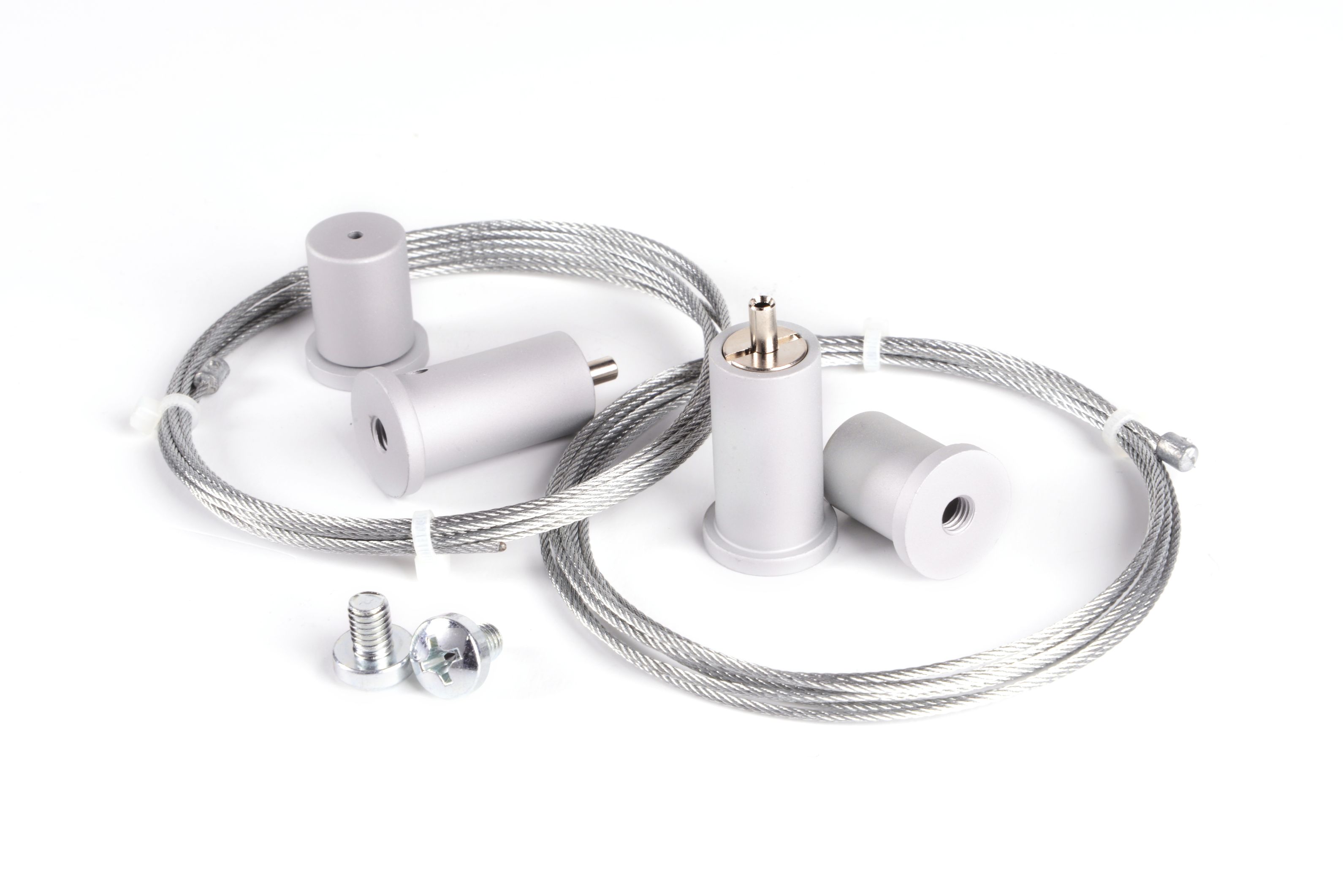

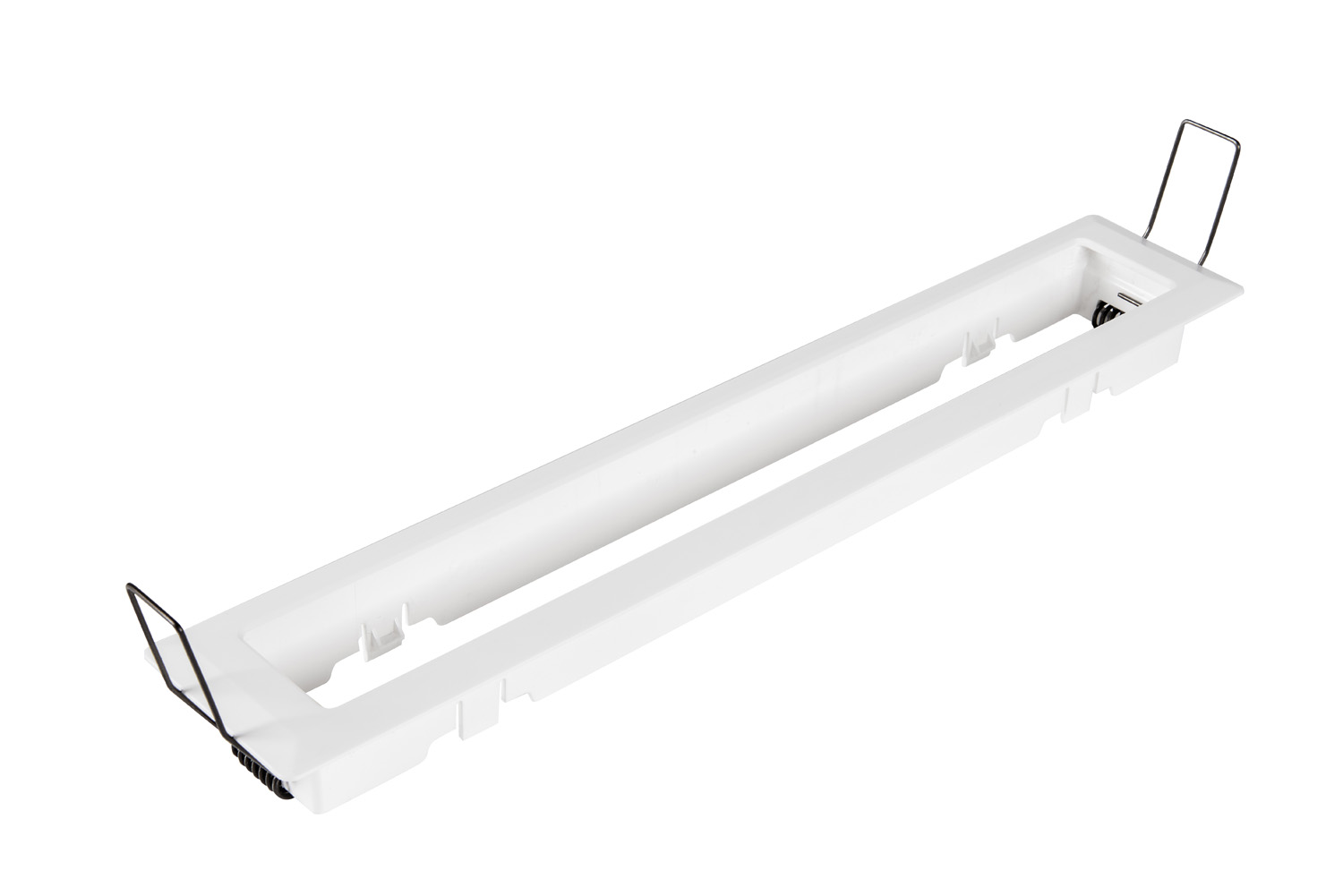

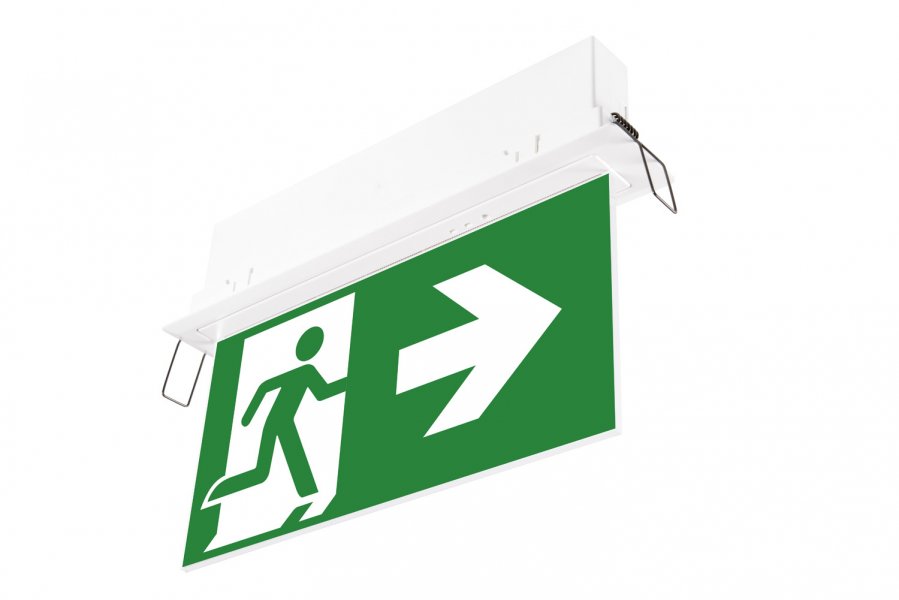

Način uporabe:	Vgradnja ali nadgradnja, stenska ali viseča
Relativna vlažnost:	95%
Delovna temperatura:	od 10°C do + 40°C

Izbira načina delovanja: NM (non-maintained mode), M (maintained mode)

Izbira načina testiranja: MT (manual test), AT (auto test), CT (central test), CB (central battery)

Model	Način delovanja	Avtonomija	Test	Moč	Baterija
Directo S NM 1H MT	NM	1h	MT	1,5W	NiCd 2,4V 500mAh
Directo S M 1H MT	M	1h	MT	2,5W	NiCd 2,4V 500mAh
Directo S NM 2H MT	NM	2h	MT	1,5W	NiCd 2,4V 900mAh
Directo S M 2H MT	M	2h	MT	2,5W	NiCd 2,4V 900mAh
Directo S NM 3H MT	NM	3h	MT	1,5W	NiCd 2,4V 900mAh
Directo S M 3H MT	M	3h	MT	2,5W	NiCd 2,4V 900mAh
Directo S NM 1H AT	NM	1h	AT	1,5W	NiCd 2,4V 500mAh
Directo S M 1H AT	M	1h	AT	2,5W	NiCd 2,4V 500mAh
Directo S NM 2H AT	NM	2h	AT	1,5W	NiCd 2,4V 900mAh
Directo S M 2H AT	M	2h	AT	2,5W	NiCd 2,4V 900mAh
Directo S NM 3H AT	NM	3h	AT	1,5W	NiCd 2,4V 900mAh
Directo S M 3H AT	M	3h	AT	3W	NiCd 2,4V 900mAh
Directo S NM 1H CT	NM	1h	CT	1,5W	LiFePO4 6,4V 600mAh
Directo S M 1H CT	M	1h	CT	2,5W	LiFePO4 6,4V 600mAh
Directo S NM 2H CT	NM	2h	CT	1,5W	LiFePO4 6,4V 600mAh
Directo S M 2H CT	M	2h	CT	2,5W	LiFePO4 6,4V 600mAh
Directo S NM 3H CT	NM	3h	CT	1,5W	LiFePO4 6,4V 600mAh
Directo S M 3H CT	M	3h	CT	3W	LiFePO4 6,4V 600mAh
Directo S CB	-	-	CB	1,5W	-
