LPK6060-CCT/ LED
The slim LED recessed panel is suitable for installation in ARMSTRONG ceilings. The panel has adjustable power and CCT.General characteristics
| Power supply voltage: | 120 - 240 V / 50 Hz, AC |
| Time till 100 % luminance: | 1 s |
| Lifetime: | 50 000 h |
| Number of switches before stop working: | 40 000 x |
| Dimmable: | No |
| LED chip: | RE-FOND |

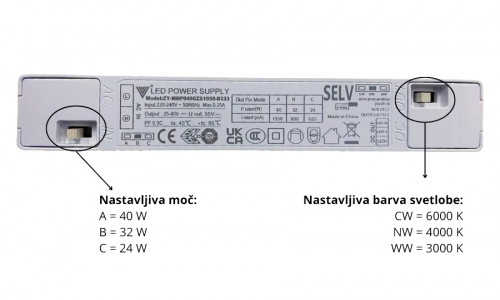

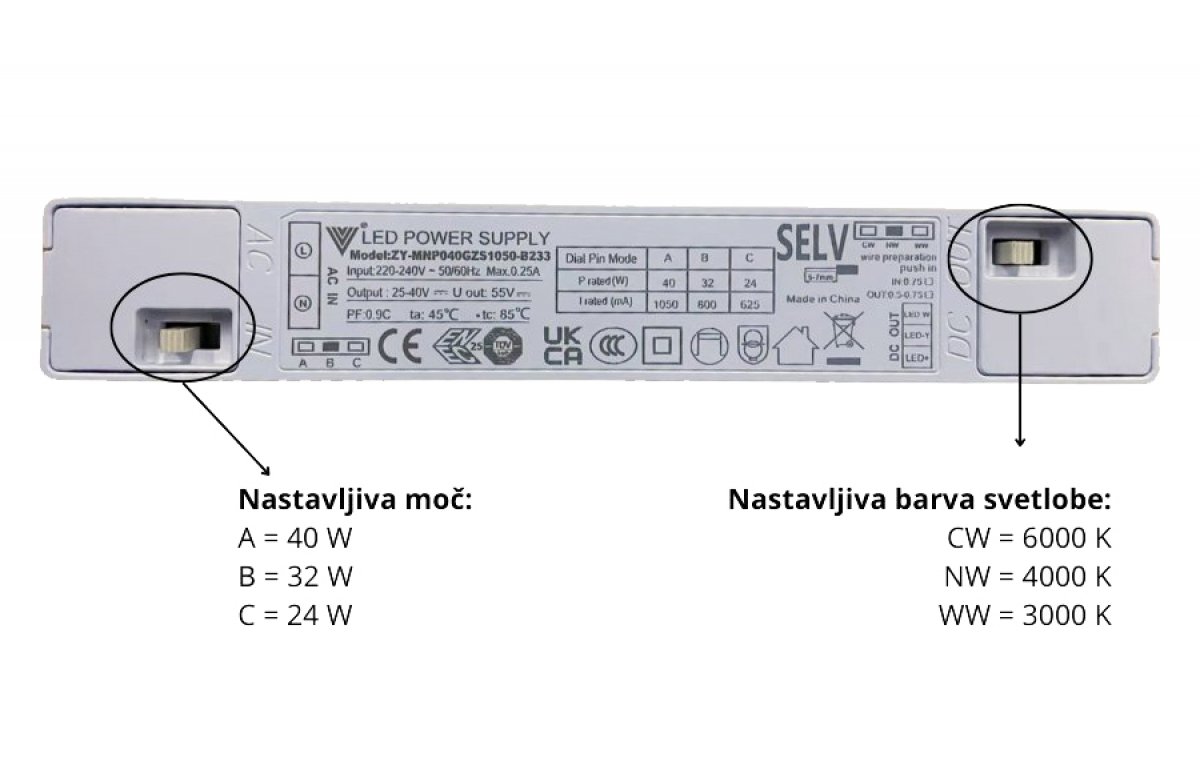

| LED driver: | LIFUD / BOKE / optional KGP DALI push-dim |
| IP protection: | IP44 / IP20 |
| Material: | Housing: aluminium, PMMA diffuser |
| Application: | Armstrong ceiling installation or upgrade (frame) installation |
| Working temperature: | from 0˚C to +40˚ C |
Additional options
| Brackets for ceiling or wall mounting |
| Aluminium frame for recessed installation |
| Infrared movement sensor |
| Emergency lighting module |
Technical specification
| Model | Power | Luminous flux | Efficciency | CCT | CRI | UGR | Exit angle | PF | Dimensions | |
|---|---|---|---|---|---|---|---|---|---|---|
| LPK6060-CCT/LED | 24-32-40 W | 3360-4480-5600 lm | 140 lm / W | 3000/4000/5000 K | Ra > 80 | < 19 | 110° | >0,90 | 595 x 595 x 10 mm |
