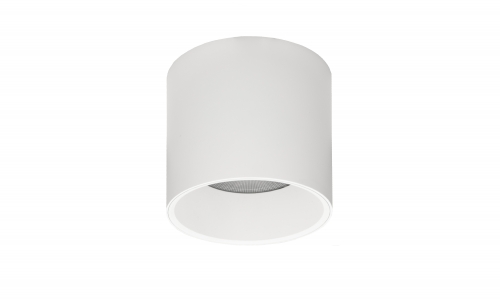

NDL2012

Power supply voltage:	240 V / 50 Hz, AC
Time to full brightness:	1 s
Lifespan:	50,000 h
Number of switches before failure:	40,000×
Dimming:	No, optional: PUSH-DIMM, DALI
LED driver:	LIFUD or Eaglerise
LED chip:	Bridgelux
Protection level:	IP65
Material:	Die-cast aluminum
Mounting type:	Surface ceiling installation
Operating temperature:	from 0°C to +35°C

Optional version for track mounting

Model	Power	Luminous flux	Efficiency	CCT	CRI	UGR	Beam angle	PF	Dimension a x b
NDL2012/3 B	12 W	1080 lm	90 lm / W	3000 K	Ra > 90	< 19	24°	0.95	Ø100 x 100 mm
NDL2012/3 W	12 W	1080 lm	90 lm / W	3000 K	Ra > 90	< 19	24°	0.95	Ø100 x 100 mm
NDL2012/4 B	12 W	1080 lm	90 lm / W	4000 K	Ra > 90	< 19	24°	0.95	Ø100 x 100 mm
NDL2012/4 W	12 W	1080 lm	90 lm / W	4000 K	Ra > 90	< 19	24°	0.95	Ø100 x 100 mm
